In a Hyper-V virtualized environment, virtual hard disks (VHD/VHDX) can be either fixed size or dynamically expanding. Each type has its advantages and is suited for different scenarios.
Hyper-V fixed size disks vs. dynamic disks
Characterization | Fixed Size | Dynamic |
Storage Allocation | Pre-allocate entire disk space | Dynamically expand as data grows |
Performance | Stable performance with low IOPS impact | May affect IOPS due to scaling |
Fragmentation | No fragmentation issues | May create disk fragmentation, affecting performance |
Storage management | Requires advance planning of storage space | May result in insufficient storage space |
Scenarios | Production environments, database servers | Testing environments, development environments |
Why are fixed-size disks recommended for Hyper-V production environments?
Better performance: Dynamic disk expansion increases storage IOPS load and impacts virtual machine performance.
Hyper-V fixed disks allocate full space at once, avoiding performance fluctuations associated with frequent expansion.
Avoid fragmentation: Dynamic disk growth can lead to disk fragmentation, which affects disk read and write efficiency.
Fixed disks in Hyper-V do not generate fragmentation, making IO operations more efficient.
Prevent storage over-provisioning: In SAN or shared storage environments, dynamic disks in Hyper-V can allocate more storage than is actually available, resulting in insufficient storage or even VM downtime.
Hyper-V fixed disks ensure that storage allocations are clear and reduce management risk.
How to create a fixed size disk in Hyper-V?
Step1. Create a VM without adding a hard disk

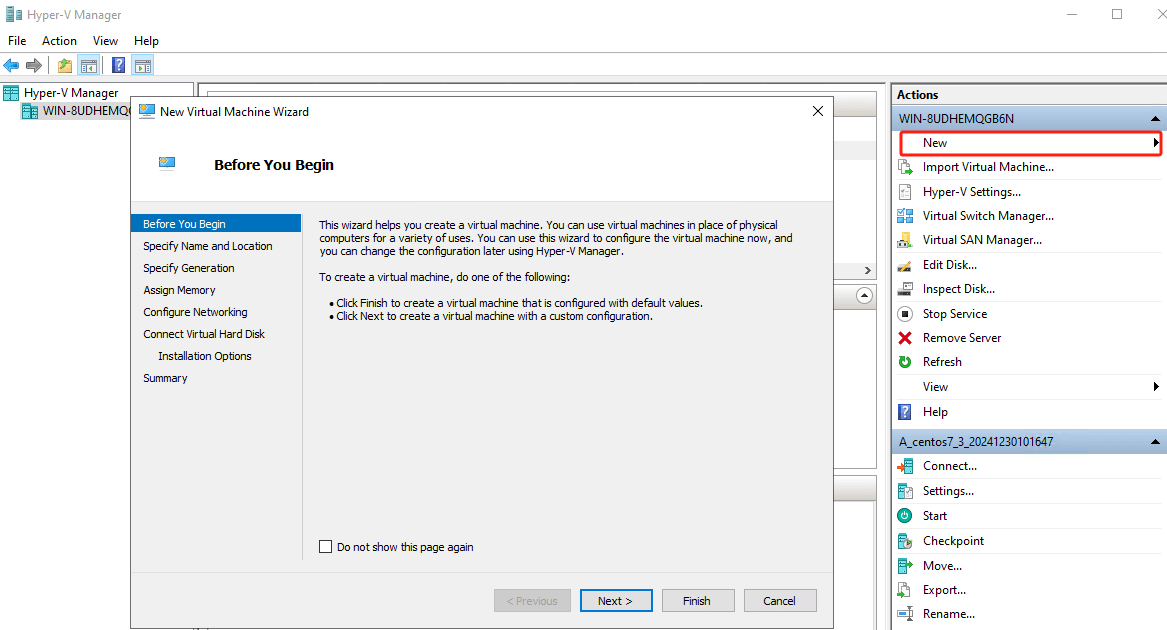

1. In Hyper-V Manager, click New > Virtual Machine, and proceed with the VM creation.

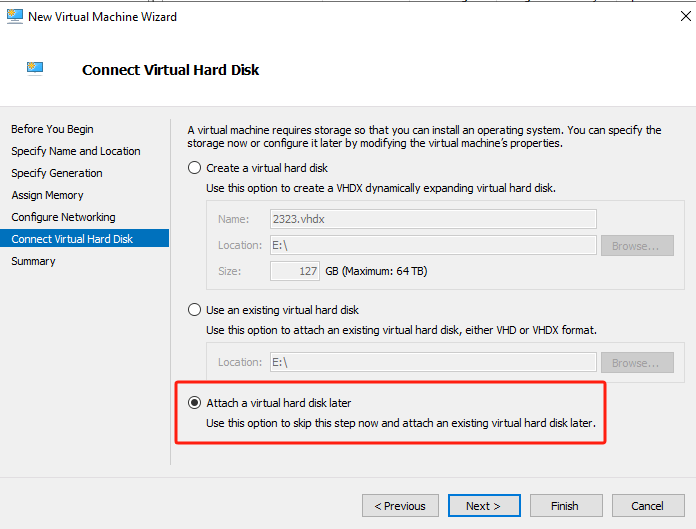

2. In Connect Virtual Hard Disk, enable Attach a virtual hard disk later
3. Complete virtual machine creation
Step2. Add a fixed-size disk to the VM

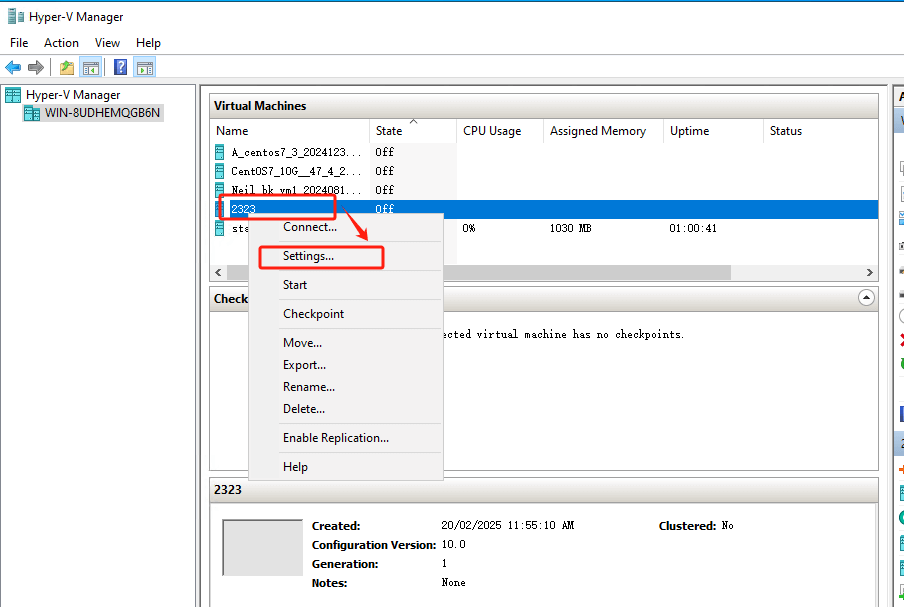

1. Right-click the created VM > select Settings

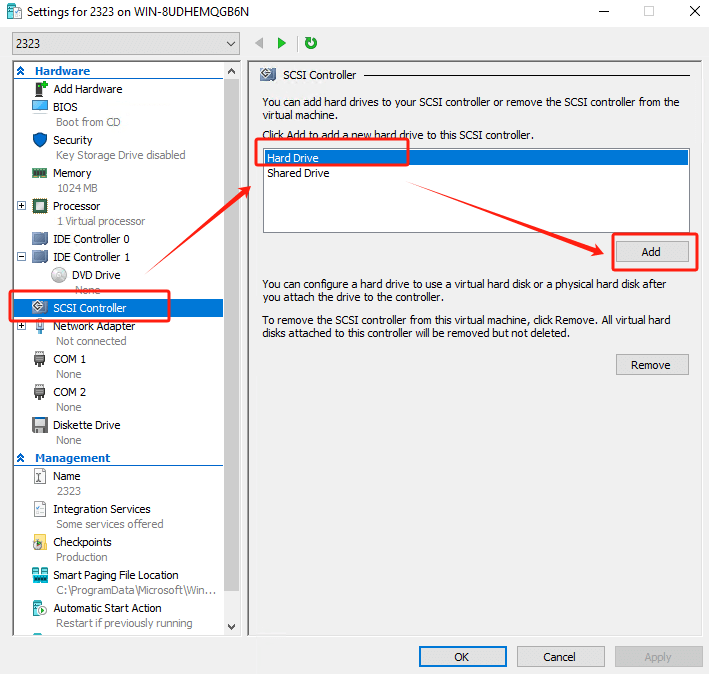

2. Under SCSI Controller, hit Hard Drive > Add

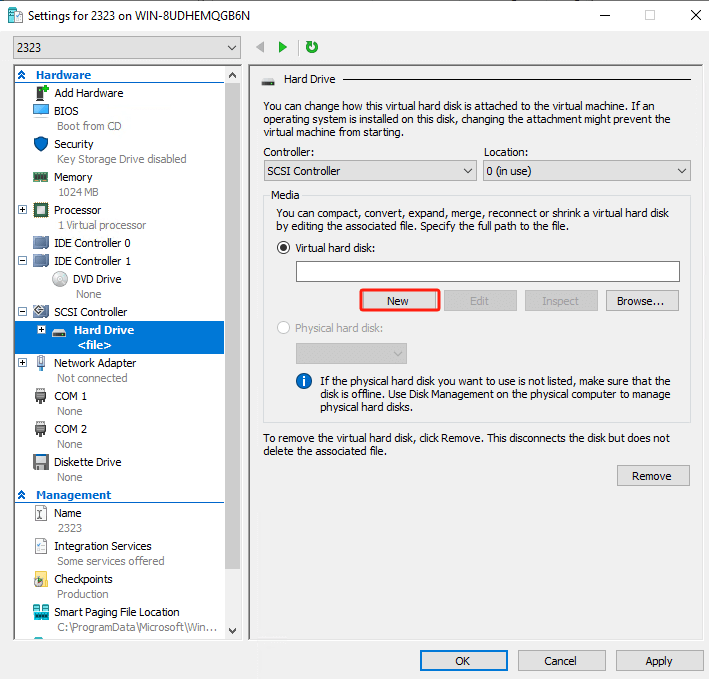

3. Click New to start the New Virtual Hard Disk Wizard
Step3. Configure fixed-size disks

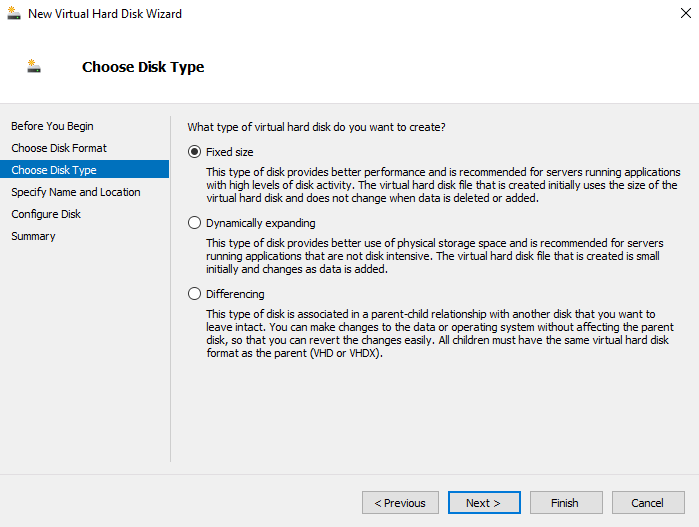

1. In Choose Disk Type, choose Fixed size

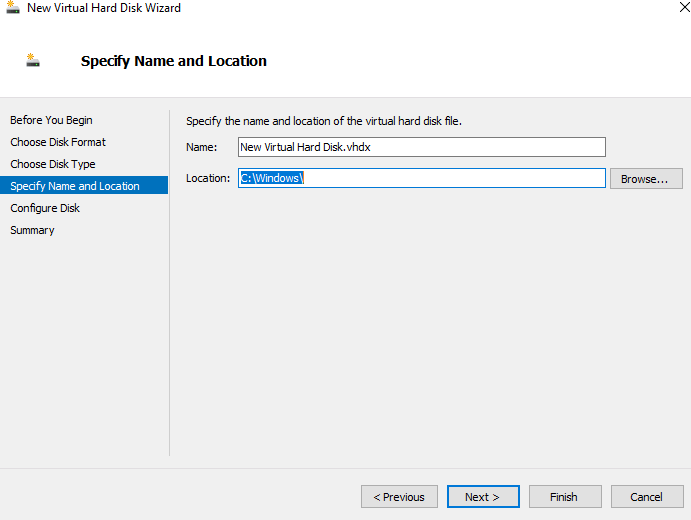

2. Name the virtual hard disk (VHD/VHDX) and choose its location

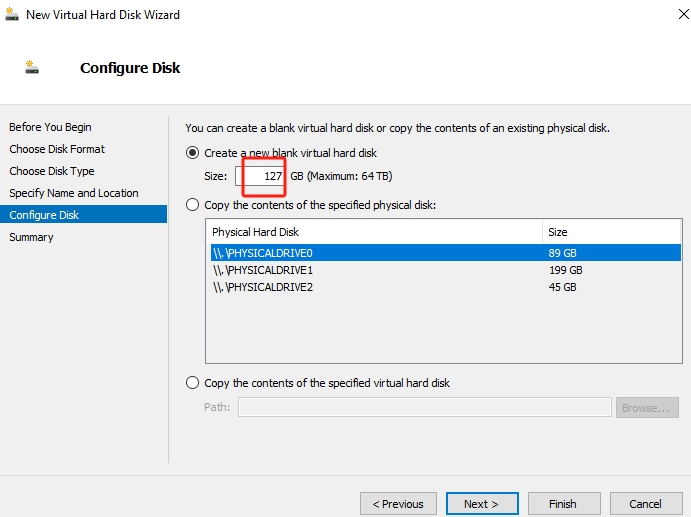

3. Create the size of disk

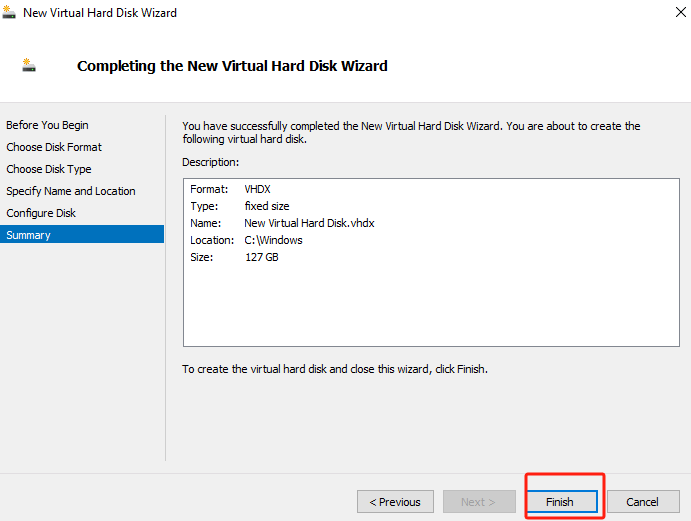

4. Click Finish to complete the creation of the new virtual hard disk
Enhancing Hyper-V performance and security with Vinchin Backup & Recovery
While fixed-size disks in Hyper-V offer better performance, lower IOPS impact, and reduced fragmentation, they cannot prevent data loss caused by unexpected failures. Even with the best storage planning, hardware failures, accidental deletions, cyber threats, and storage issues can put your virtual machines at risk.
Thus, regular backups are essential to ensure both data security and business continuity. Vinchin Backup & Recovery provides comprehensive and flexible backup options for Hyper-V environments, including full backups, incremental backups, and snapshot backups, giving you the flexibility to choose the most suitable backup strategy for your needs.
In addition to traditional backup capabilities, Vinchin also offers data replication features, enabling you to perform seamless VM migration and data migration between different Hyper-V hosts or even across different virtualization platforms. This ensures high business availability by protecting against data loss and minimizing downtime during recovery or migration processes.
With Vinchin, you not only secure your virtual machines but also gain peace of mind with automated and scheduled backups, efficient disaster recovery. These features make it an ideal choice for businesses looking to enhance operational efficiency and resilience in their virtualized environments.
Vinchin Backup & Recovery's operation is very simple, just a few simple steps.
1.Just select VMs on the host
2.Then select backup destination
3.Select strategies
4.Finally submit the job
Vinchin offers a free 60-day trial, so you can try out its features in a real-world setting. If you'd like to learn more or have any questions, feel free to reach out to Vinchin directly – they're happy to help!
Hyper-V fixed disk FAQs
Q1: What is a dynamically expanding vs. fixed-size virtual hard disk in Hyper-V?
A1: Dynamically expanding virtual drives gradually take up more physical disk space as needed, rather than taking up all of the allocated space at once.
Fixed-size virtual drives are created with the amount of physical disk space they will occupy.
Q2: How to convert an existing dynamically expanding virtual hard disk to a fixed-size virtual hard disk?
A2: Conversion can be done via PowerShell commands or by using Hyper-V Manager. It usually involves using the Convert-VHD cmdlet to change the VHD type.
Conclusion
In Hyper-V environments, choosing between fixed-size and dynamically expanding disks depends on specific needs. Fixed-size disks offer better performance, stability, and lower fragmentation, while regular backups, such as those from Vinchin, are vital for ensuring data security and business continuity. Vinchin Backup & Recovery offers an efficient, flexible solution for backing up Hyper-V VMs, providing automated backups and seamless recovery for enhanced data protection.
